ANSVIS Overview

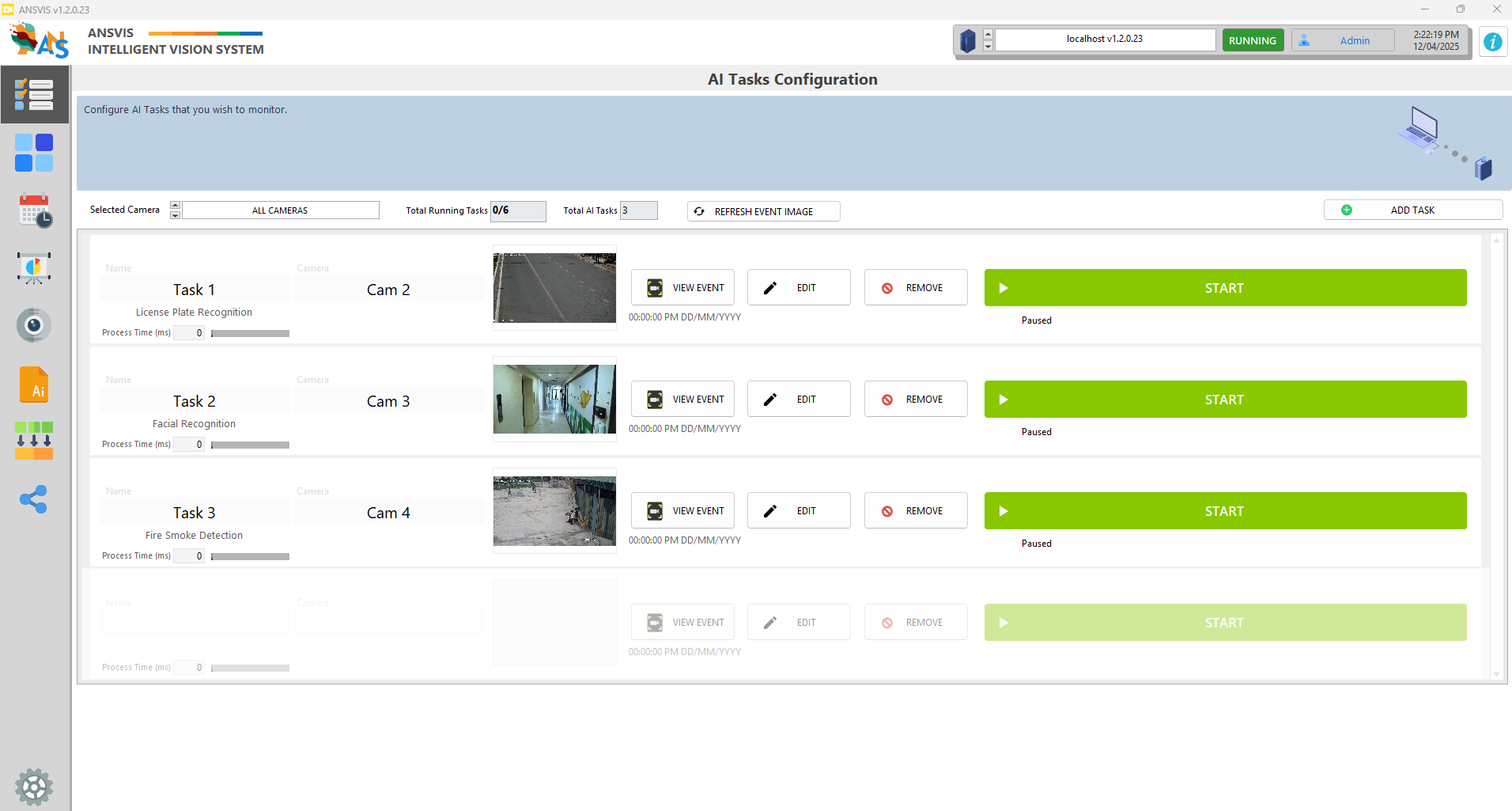

AI Task​

The AI Task page manages all created AI Tasks, allowing you to:

  • Add, edit, remove AI tasks
  • Start and Stop AI tasks
  • Monitor the number of tasks allowed by your license key
  • View AI Task status, process time, and more

Multiview​

The Multiview page provides an overview of all AI Task video streams. It is ideal for operators monitoring events in a control center. This feature allows you to:

  • View live streams of AI Tasks, similar to a Video Management System (VMS)
  • Highligh detected events in real-time
  • Display the total number of events since opening Multiview, with direct links to the Event Log
  • Control event highlight duration and live view display time
  • Manage the number of tasks displayed per view and other layout options

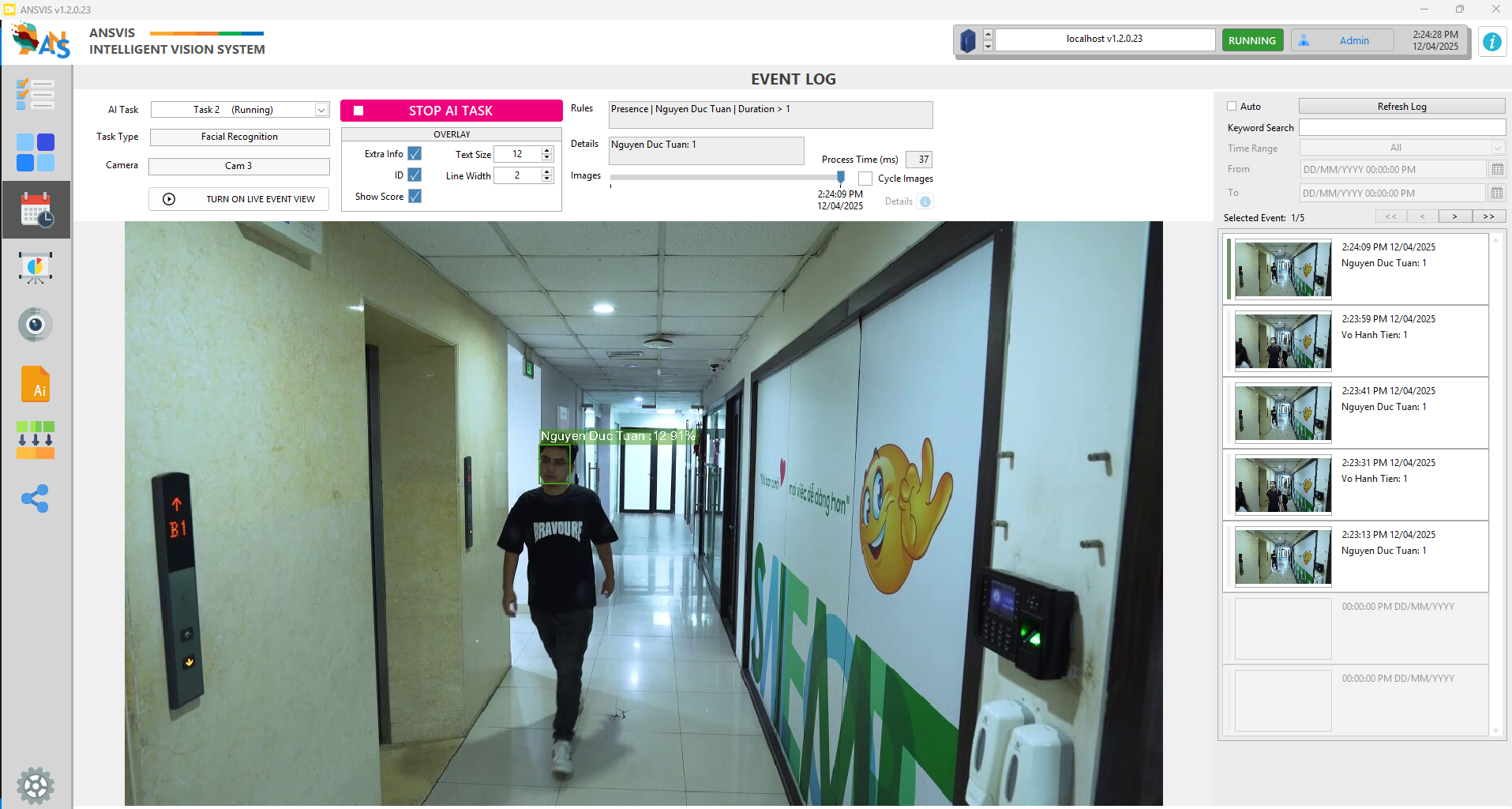

Event Log​

The Eventlog page displays detailed event data and performance metrics for each AI Task, including:

  • Event images, timestamps, and detection results
  • Processing time
  • Additional metadata and event-specific information

Event Summary​

The Summary page provides a visual overview of event counts for each AI Task over a selected time period. Events are displayed in pie charts and time-series graphs, enabling you to:

  • Analyze trends in object detection
  • Compare activity levels across tasks
  • Identify patterns and peak periods of event occurrence

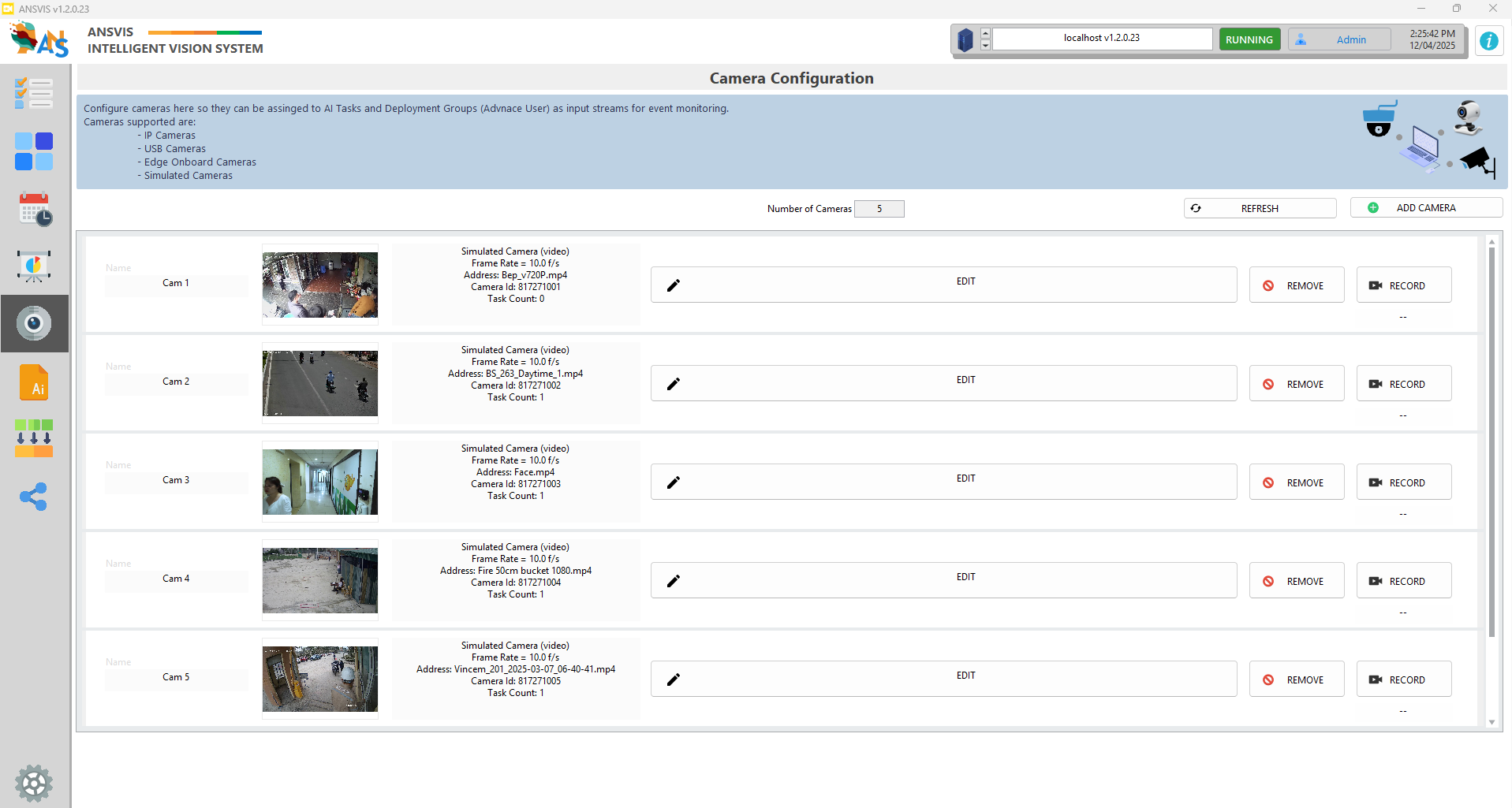

Camera​

The Camera page allows you to add and manage the camera library in ANSVIS Server, which will be integrated into AI Tasks for surveillance purposes.

Advanced View

The next pages are only accessible by enabling the Advanced View mode from the Setting page

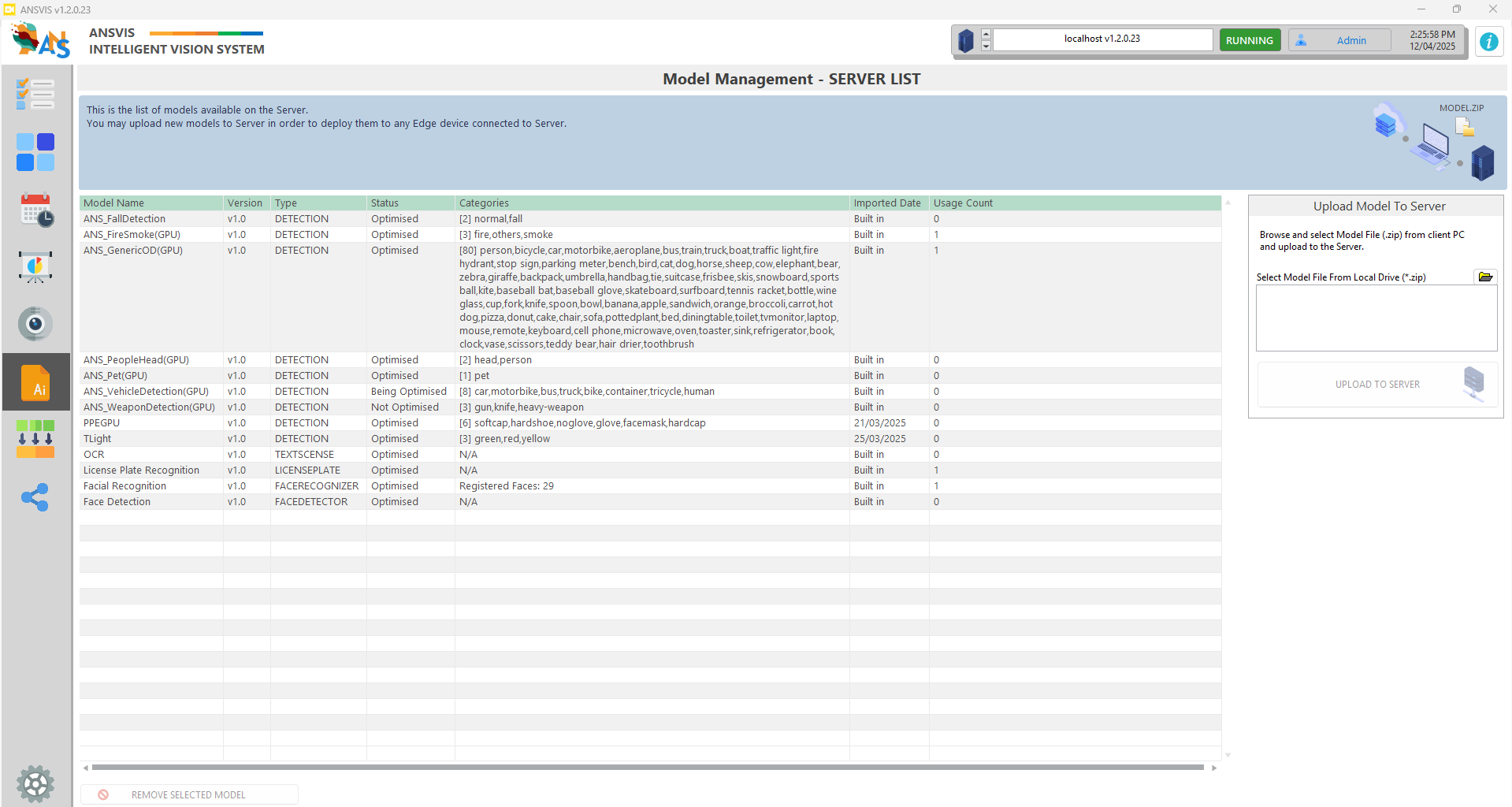

Model​

The Model page allows you to manage models in ANSVIS Server, including:

  • Access to built-in server models
  • Import models trained using ANS Training Tool or other 3rd-party models

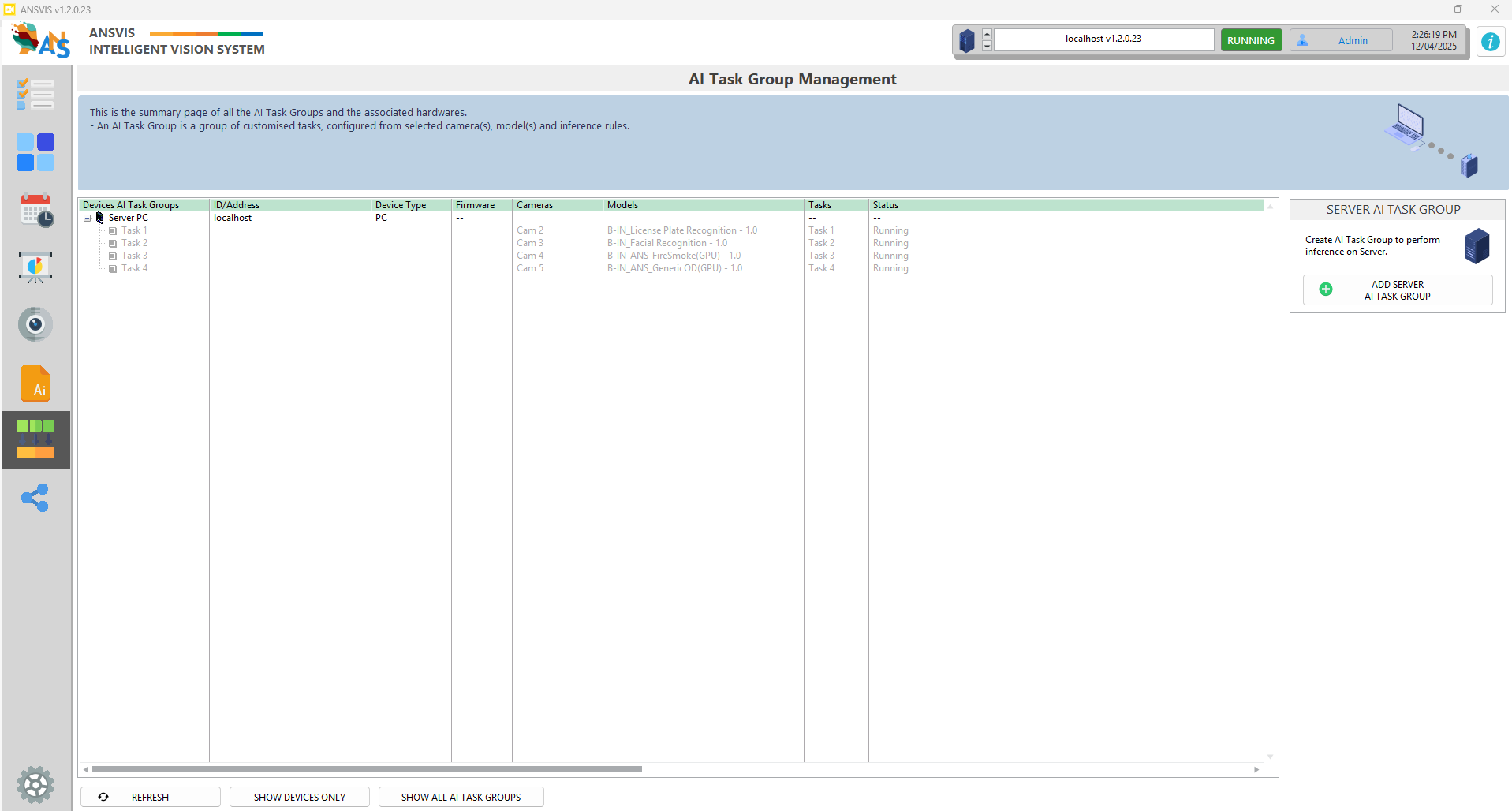

Custom AI Task​

The Task group page allows you to build custom AI Task pipelines. Features include:

  • Selecting and combining AI models
  • Designing model workflows with rule definitions and post-processing logic
  • Fine-tuning parameters such as confidence scores, tracking options, and more
  • Accessing advanced triggers and integration capabilities
